Product Features:
The blue PVC heat shrink film is encapsulated with epoxy board,which is simple,reliable and easy to install;Connector plug output end:XT60
plug output mode is adopted,and the interlocking increases the reliabili- ty of electrical conduction.
It adopts ultra-soft silicone rubber wire output,which is heat-resistant and enhances the reliability of electrical conductivity;
Data communication management:485 communication is adopted for precise data transmission,accurate temperature control,and real-time battery status monitoring and control to eliminate potential safety haz- ards to the greatest extent;
BMS communication employs optocoupler isolation.The product sup- ports 485 bus as an optional communication option for customers,sup- ports networking,and has a communication baud rate of 9600bps;
Battery management:It features high stability,highly accurate monitor- ing,precise control,ESD protection,and temperature protection func- tions.Eliminate potential safety hazards to the greatest extent;
The battery pack is safe and supports 1C rate discharge,with a discharge capacity of over 90%.
The battery pack is safe,has good discharge performance and a long cycle life.
The battery pack has a high cycle life and conforms to the value concepts of low carbon,energy conservation and environmental protection

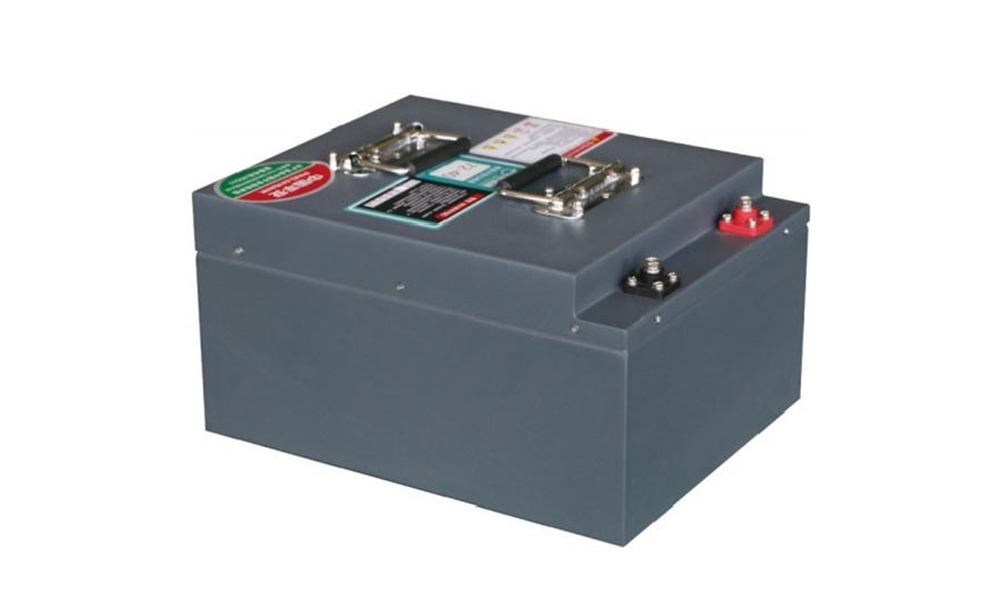

Product model:7240
|
Nominal voltage |
72V |
|
Nominal capacity |
40Ah |
|
Nominal energy |
2880Wh |
|
Maximum output current |
40A |
|
Product size |
450*225*170mm |
|
Product weight |
≤23.3Kg |
|
Applicable motor powe |
≤2000W |
Application scenarios:
Mainly applied to electic forklifts,enginering vehicles,two-wheelers,three-wheelers,four-wheelers,etc.
