Product Features：
Shockproof:Through the design of shockproof structure filled inside the cold-rolled sheet metal shell,it meets
the requirements of high safety and high reliability.
High current:The battery cells are connected by cop-
per-nickel composite nickel strips,which is safe and reli- able.
Communication interface:It adopts the RS485 commu- nication protocol,which can read information such as
battery voltage,current,temperature and capacity.
Data communication management:Utilizing BMS soft- ware management chips,precise data transmission,and accurate temperature control,it minimizes potential
safety hazards to the greatest extent.
The battery pack is safe and equipped with a tempera- ture probe.It will automatically start protection when the temperature exceeds the limit.
The battery pack has a high cycle life and conforms to the value concepts of low carbon,energy conservation and environmental protection.

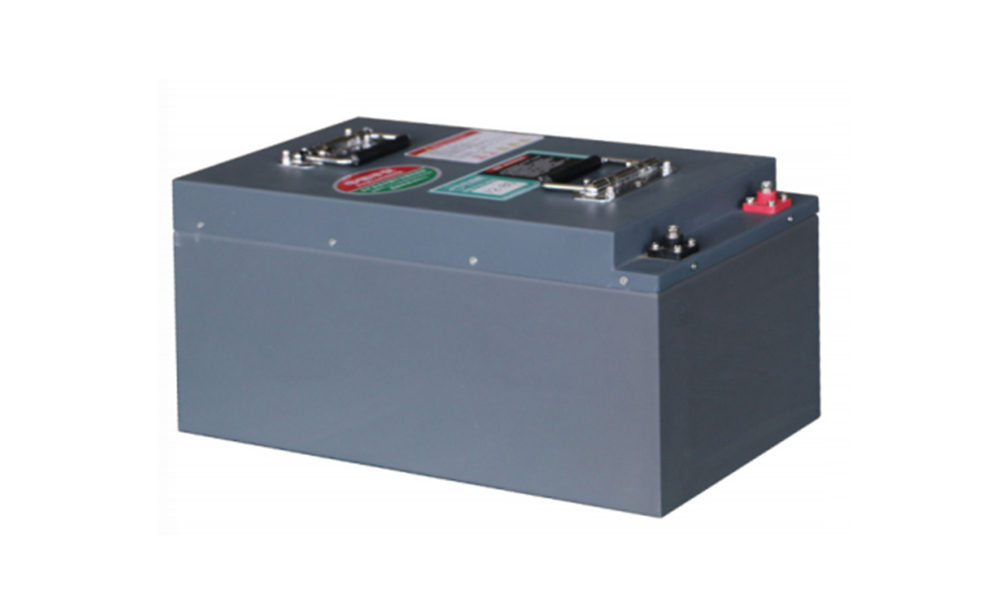

Product model:7280
|
Nominal voltage |
72V |
|
Nominal capacity |
80Ah |
|
Nominal energy |
5760Wh |
|
Maximum output current |
80A |
|
Product size |
450*225*170mm |
|
Product weight |
≤52Kg |
|
Applicable motor powe |
≤5000W |
Application scenarios:
Mainly applied to electric forklifs,engineering vehicles,two-whelers,three-whelers,four-wheelers,etc.
